Main Feature

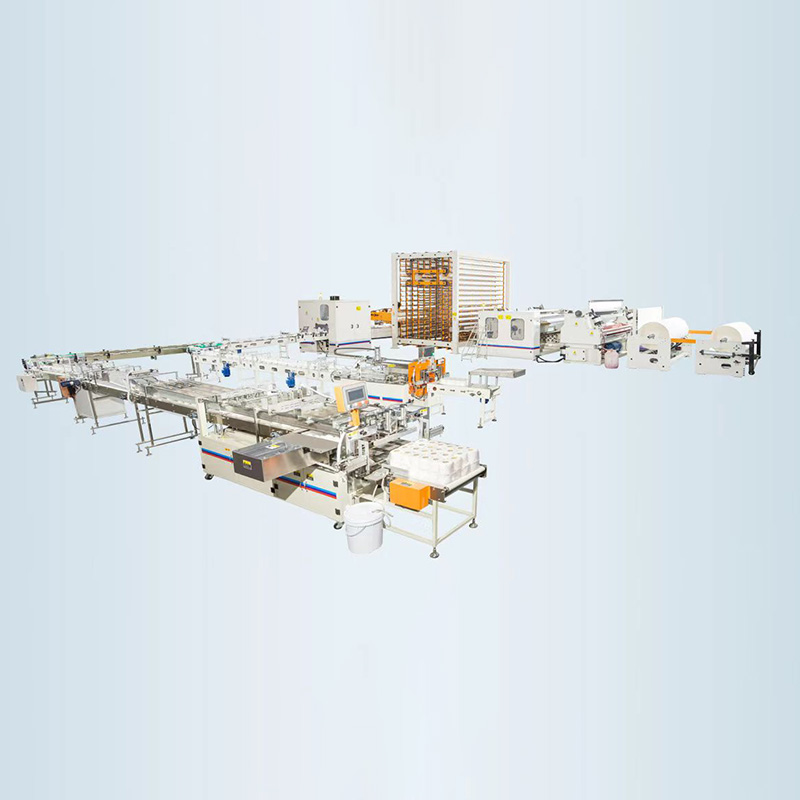

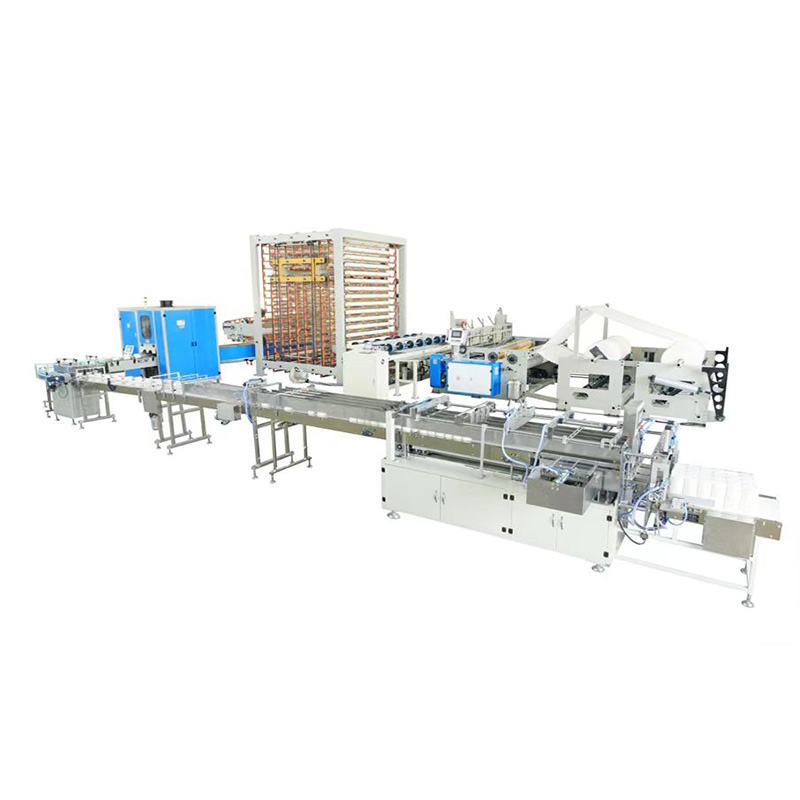

1. TP-B30REM Type Toilet Roll Paper Muti-functional Bundling Pack Machine is suitable for single packed cored or unpacked cored horizontal, vertical arrangement, single-layer, multi-layer Bag packaging.
2. The arrangement of paper towels, pre-filling bags, feeding and filling pulling bags, and bags sending are all driven by servo, which is easy to operate and convenient to maintain.
3. The centralized management mode of the negative pressure station is adopted to effectively reduce energy consumption.
4. The whole set adopts the heating tube sealing system, which fully meets the diversified requirements of the user's packaging material thickness variation, inside/surface printing, and inaccurate corona density of the packaging material, ensuring the adaptability of the packaging material, beautiful sealing and stable operation.
5. Configure the waste bag non-stop automatic culling function, air source management function, fault alarm display function and servo overload protection function.
6. The highest stable production speed is 20 packs/minute.
Jumbo roll diameter | ≤∅1300mm |
Jumbo roll width | Maximum-1950mm |
Diameter of jumbo roll core | 76mm |
Core length | 1000-2500mm |
Speed capacity | 160-200m/min |
Finished product diameter | 90-260mm |
Cutting machine total power | 5.8kw |
Rated voltage and power | 380VAC,3kW(main motor)+0.25kW(paper cutting motor)=3.25kW |
Main machine size | 3000mm X 950mm X 1600mm |
Emboss unit | Please specify |
Automatic Jumbo Roll Loading System | Auto Pneumatic loading |
Others | Automatic cutting paper spraying glue sealing function. |
Automatic kicking paper function. |
Main Feature
1. TP-B30REM Type Toilet Roll Paper Muti-functional Bundling Pack Machine is suitable for single packed cored or unpacked cored horizontal, vertical arrangement, single-layer, multi-layer Bag packaging.
2. The arrangement of paper towels, pre-filling bags, feeding and filling pulling bags, and bags sending are all driven by servo, which is easy to operate and convenient to maintain.
3. The centralized management mode of the negative pressure station is adopted to effectively reduce energy consumption.
4. The whole set adopts the heating tube sealing system, which fully meets the diversified requirements of the user's packaging material thickness variation, inside/surface printing, and inaccurate corona density of the packaging material, ensuring the adaptability of the packaging material, beautiful sealing and stable operation.
5. Configure the waste bag non-stop automatic culling function, air source management function, fault alarm display function and servo overload protection function.
6. The highest stable production speed is 20 packs/minute.
Jumbo roll diameter | ≤∅1300mm |
Jumbo roll width | Maximum-1950mm |
Diameter of jumbo roll core | 76mm |
Core length | 1000-2500mm |
Speed capacity | 160-200m/min |
Finished product diameter | 90-260mm |
Cutting machine total power | 5.8kw |
Rated voltage and power | 380VAC,3kW(main motor)+0.25kW(paper cutting motor)=3.25kW |
Main machine size | 3000mm X 950mm X 1600mm |
Emboss unit | Please specify |
Automatic Jumbo Roll Loading System | Auto Pneumatic loading |
Others | Automatic cutting paper spraying glue sealing function. |
Automatic kicking paper function. |
