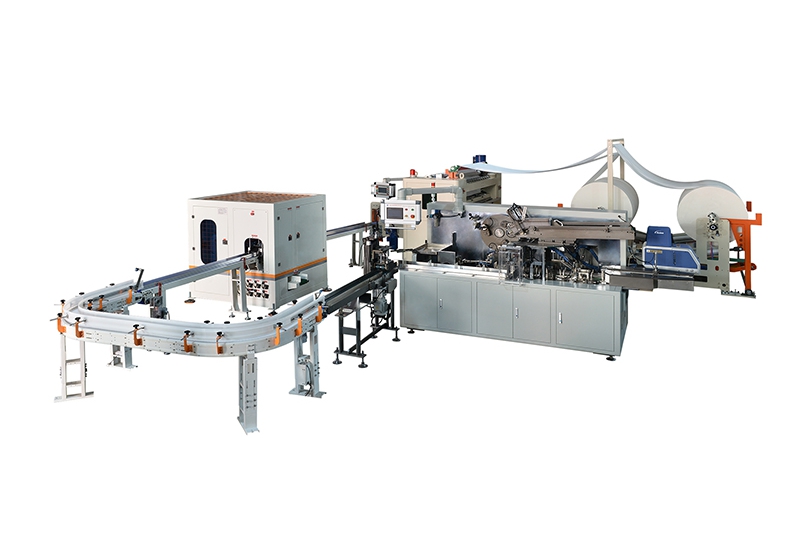

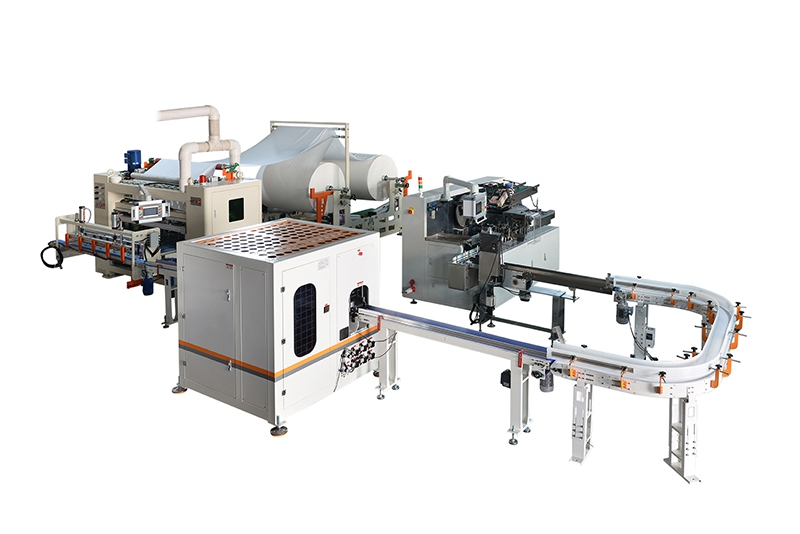

ZH-FD Fully Automatic Facial Tissue Boxing Machine Production line

Fully automatic facial tissue production line is to slit and fold the embossed or printed jumbo roll paper through knife roller, and form a long log tissue paper in a continuous interfolding chain. It is automatically separated and fold according to the set folds number as needed. The folded long log tissue paper are automatically pushed forward or sideways into the conveyor to the log saw, cut into the expected size, and then delivery to the packaging machine process to be packaged into paper box, soft film and bottom pull type . The machine adopts vacuum adsorption, inverter speed regulation, automatic counting, folding, and human-machine interface parameter input. It has the advantages of fast speed, neat folding, easy operation, and labor cost saving.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Main feature:

1. Production speed:130m/min, separate folding speed 12-15 log/min.

2. Automatic transfer instead of manual taking paper to the conveyor,with width available:.1500-2200mm.

3. High degree automation, powerful extended function in integrated control system, with remote detection function.

4. Simple structure, touch screen easy operation and maintenance

5. Stable operation,high production efficiency.

6. With automatic paper tail folding function .

Mechanical, electrical and optical integrated control technology,automatic detection,accurate feedback.

7. Electro,mechanical,optical integration control technology, automatic detection, precise feedback.

8. Equipped with pre-pressing and servo flipping mechanism to ensure neat and stable products. Independent frequency conversion motor, servo motor, electric hoisting and pneumatic arm paper loading.

9. Vacuum adsorption V-shaped staggered folding (optional) folding method adopts new energy-saving constant vacuum.

10. Raw materials can be selected from facial tissue/non-woven fabric/cream paper. Dry tissue production speed 160 packs/minute; cream paper  130 packs/minute, facial tissue 180 packs/min.

Mode according to the folding size)

ZH-FD 170-210 /4-14T(Other size can be customized)

Remarks

Finished product unfolded size (Such as 180mm0

L*W:180*(100-210)


Finished product folding sized

L*W:90*(100-210)


Jumbo roll diameter

1200mm-1500mm(Other size can be customized)


Jumbo roll inner core diameter

76mm(Other size can be customized)


Folding Speed

130 m/min


Transfer speed

12-15log/min


Counting range

100-250 sheet


Transfer control

Servo motor,integrated control


Finished product trimming

Automatic


Edge embossing

Independent pneumatic


Embossing optional

Steel-on-rubber/steel-on-wool/steel-on-felt ,steel to steel rollers


Folding mode

V fold interfold


Jumbo  width

1500-2200mm


Slitting system

Pneumatic doted cutting


Counting system

Ink counting


Programming control system

PLC


Driving mode

Inverter


Parameter setting

Man-machine interface


Vacuum system

7.5KW-22KWRools vacuum pump


Compressed air

Self  provided
