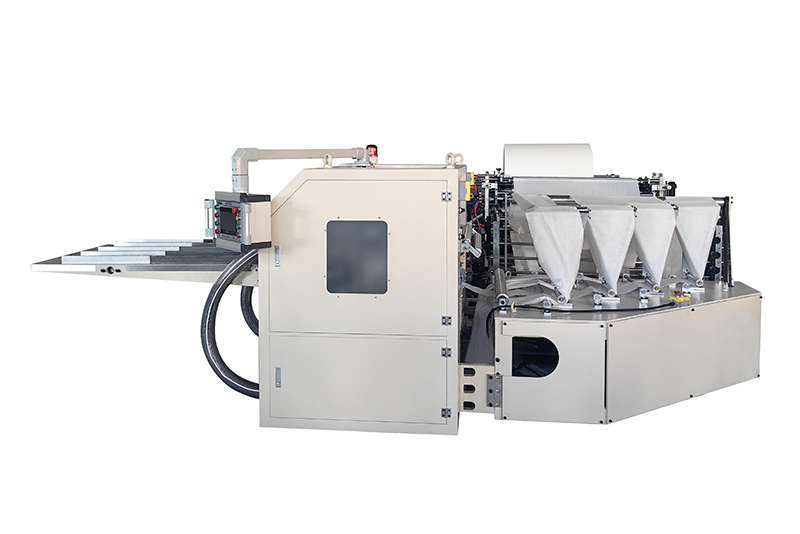

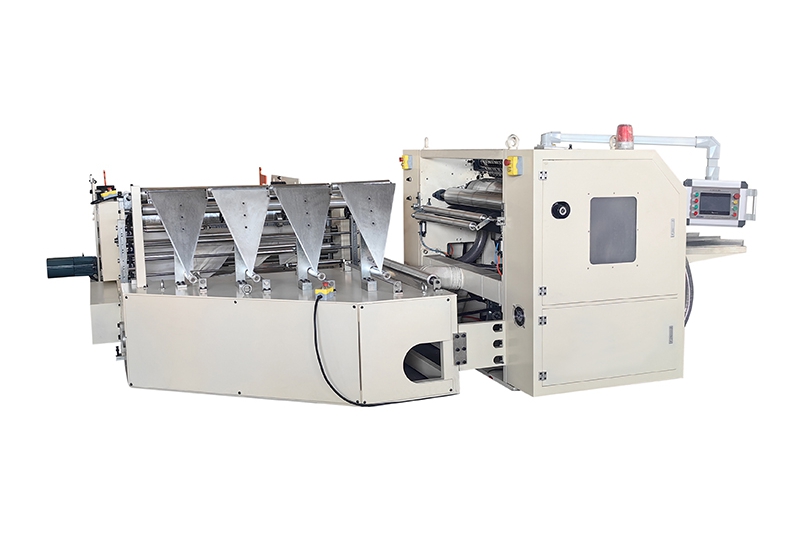

Machine Model ZH-XCJ-4L-405Phone:
+86-136-6989-2828
+86-135-4935-6898
+86-135-4935-6898
Main Feature
1. Equipped with steel wool roller embossing, the pattern is full of stereoscopic sense.
2. The pneumatic paper feeding function greatly reduces the labor intensity of workers.
3. Adopting vortex vacuum pump adsorption system, with large suction volume and stable operation.
4. Automatically stop when paper breaks to avoid unqualified products caused by paperless or paper broken. The switch is turned on and off to pull the jumbo raw paper, it is safe and simple.
|
|
Finished Product 405*380mm±2 open size | 420*380mm±2 430*380mm±2 |
Diameter of jumbo roll | According to machine different size and mode |
Max jumbo diameter | ∅1500mm(Other diameter please specify) |
Jumbo roll paper core inner diameter | 3”(76.2mm) |
Folding size of finished product | 200*100mm±2 |
Counter unit | Electronic counting |
Folding Capacity | 300-500sheet/lane/min |
Folding Device | 1/4,1/6,1/8(please specify) |
Power | 5.5KW Frequency conversion speed regulator |
Automatic jumbo roll loading | Pneumatic |
Calendering | Steel to steel / rubber |
Embossing Bottom Roller | Felt /Rubber/woolen /steel roller |
Total Power(KW) | 20 |
